TheSiemens Digital Industries Softwaredevelopment team is pleased to announce the availability ofSimcenter Femap 2506.0001. This release added the new ZONA ZAERO workflow, build aeroelastic models right on your structural mesh, no manual file handling needed.
ZONA was a private company, founded in 1985, with a focus on aeroelasticity. Aeroelasticity is a specialized field in aerospace engineering that focuses on the interactions between elastic structures and aerodynamic forces. Since 2024 ZONA has been part of the Siemens portfolio.
The primary product of ZONA was ZAERO. This powerful package makes it possible to model Flutter, Parametric Flutter for Aircraft with Stores, Non-Linear Flutter, Aeroservoelasticity, Transient Gust Loads, Transient Maneuver Loads, Transient Ejection Loads, and Trim Loads.

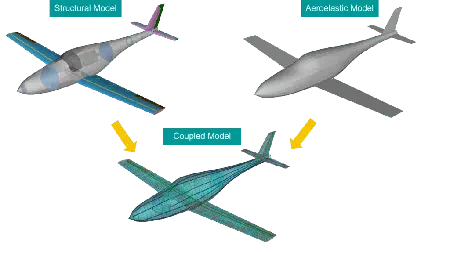

When using the current process with Simcenter Nastran, numerous input/output text files must be created in order to run a ZONA aeroelastic analysis. The new ZONA ZAERO workflow allows users to create and overlay the aeroelastic model directly on top of the structural model. ZEARO results are automatically recovered for post-processing. The new version of Simcenter Femap 2506 introduces new ZONA ZAERO entities to support the updated ZONA process.

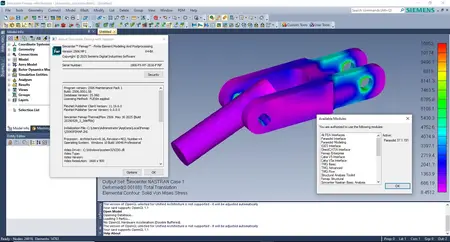

Owner:Siemens PLM Software
Product Name:Simcenter FEMAP
Version:2506.0001 with NX Nastran
Supported Architectures:x64
Website Home Page :www.plm.automation.siemens.com
Languages Supported:multilanguage
System Requirements:Windows *
[b]Size:[/b]3.8 Gb


What's new in Simcenter Femap 2506.0001
Simcenter Zona ZAERO - A new graphical workflow
Before version 2506, the ZAERO process was primarily text input file based. The updated workflow enables users to create and modify both the structure and the aeroelastic model within the Simcenter Femap interface.

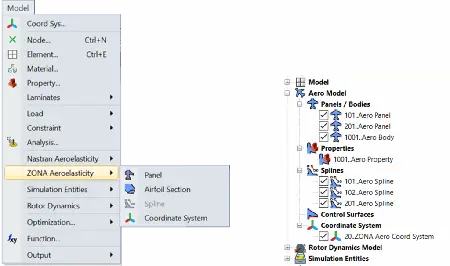

Simcenter Zona ZAERO utilises input "cards" to define both the aeroelastic model and its interface with the structural model, similar to Simcenter Nastran. The workflow includes creating the structural model, specifying aero panels, airfoil sections if required, and aero bodies. Aero components are connected to the structural model through aero splines. The Zona Aeroelasticity feature is accessible from a recently introduced menu located below the Nastran Aeroelasticity commands.

ZAERO panel

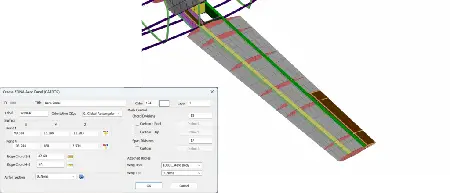

A Panel specifies the principal aerodynamic surfaces of the structure, including the wing, rudder, and elevator. Surfaces may be defined by inputting coordinates or selecting points from the structural geometry. Mesh size is managed via the Chord Divisions and Span Divisions settings. Additionally, when the analysis incorporates bodies such as the fuselage, the attachment point is designated at this stage. In the present example, the wing root is affixed to the fuselage body.

ZAERO section

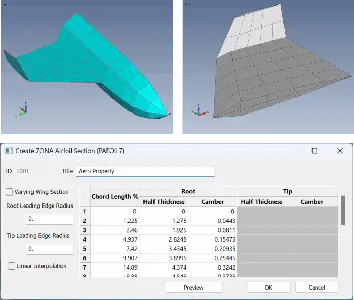

Airfoil Section assigns airfoil profiles to these surfaces, facilitating more detailed analysis and higher fidelity results.
- Dynamically display panels with aero thickness
- Excel like functionality to enter data directly into cells
- Option to have different root/tip section
- Preview button to show 2D Description of section data

ZAERO spline

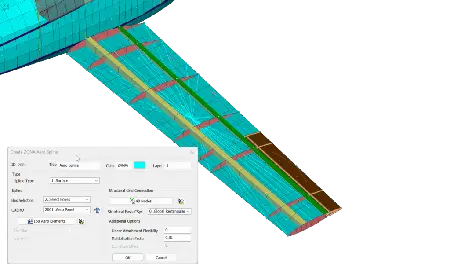

Aero Splines connect the structural mesh to the aeroelastic mesh. It's a simple connection from specific "boxes" or an entire CAERO7 to nodes from the structural model. Nodes can be picked manually with all the node selection options, or from a FEMAP group.

Output tables for post-processing

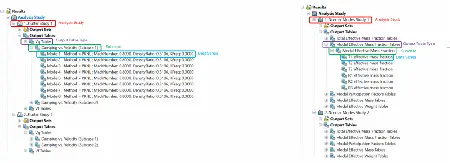

The introduction of ZONA ZAERO Post-Processing functionality required a revised approach to managing tabular output data. In earlier versions of FEMAP, tabular results were stored within FEMAP functions, which are suitable for handling simple X, Y pairs of data. However, combining input functions and output results in the same location created potential confusion. As a result, FEMAP functions will be designated as Pre-Processing items, while Output Tables will serve as Post-Processing items. The FEMAP development team opted to retain Functions for input operations, while implementing the new Output Tables as a dedicated format for storing solver results.

With their metadata, Output Tables know where they came from, we can now customize charting to leverage this, and even tabular listings to present the data more clearly.
Interpreting flutter analysis

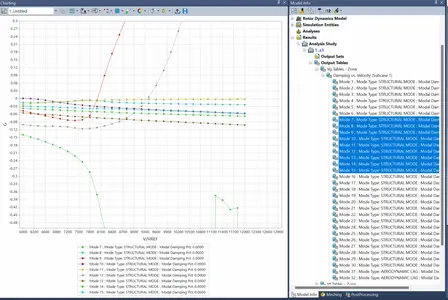

In flutter analysis, velocity vs. damping ratio graphs help engineers identify the critical flutter point where a structure's damping becomes zero or negative. These graphs show how a structure's stability changes as airspeed increases, revealing the transition from stable to unstable regions.
When examining these graphs:
- Negative damping indicates stable conditions where vibrations naturally decay
- Zero damping represents the flutter boundary (neutral stability)
- Positive damping indicates unstable regions where vibrations amplify without external energy
These Descriptions are crucial because they help engineers determine the flutter speed - the speed at which a structure becomes unstable. The V-g-ω (velocity-damping-frequency) Descriptions show how damping changes with airspeed for different vibration modes, helping identify which specific structural modes might lead to flutter issues and allowing engineers to implement targeted design modifications to improve aeroelastic stability before physical testing.


Simcenter Femapsoftware is a standalone finite element modeling (FEM) pre- and postprocessor for engineering simulation and analysis. The software is computer-aided design (CAD) independent and can import geometry from all major CAD platforms. It supports most CAD data formats. Simcenter Femap also works in combination with a wide variety of finite element analysis (FEA) solvers, including Simcenter Nastran software.
